Pellicole isolanti per vetri

The invisible insulating films for glass, 3M Thinsulate, improve the thermal insulation of your windows by 40% with a thickness of just 80 microns, while also reducing summer heat.

How Does the 3M Thinsulate Insulating Film for Windows Work?

The 3M Thinsulate insulating film is designed to insulate glass against the cold and create a thermal barrier that prevents indoor heat from escaping through the glass.

The low-emissivity 3M Thinsulate insulating film for glass is recommended in cases of poor winter insulation where it is difficult to replace window frames. You will notice a 40% improvement in the insulating performance of your glass, retaining heat in winter and reducing solar heat during the summer months.

What Are the Benefits of Insulating Films for Glass?

Cold-Resistant Insulating Films

No Window Frame Replacement Required

Serisolar’s specialized installers will apply the 3M Thinsulate film to the inside of your windows without removing the frames. The entire installation is practically invisible, completed in a day, without mess or noise.

Immediate Energy Bill Savings

The 3M Thinsulate insulating film reduces winter heat loss from existing windows by about 40%, keeping warmth in your room and resulting in energy savings on your bill.

Great Product at an Affordable Price

With a quick, efficient, and long-lasting ā€œturnkeyā€ installation, the 3M Thinsulate film avoids the costly replacement of glass and window frames and comes with a 10-year warranty. Request a free quote now!

Solutions

Shatterproof Safety Films for Glass and Frames

THINSULATEā„¢ FILMS

The 3M Thinsulate CC75 is an invisible indoor film without any reflection. Thanks to its multi-sputtered structure with a thickness of 80 microns, it can significantly improve the winter thermal insulation of existing glass by about 40%. It also provides good summer energy reflection on monolithic glass, approximately 50%. It is especially suitable for windows with architectural constraints, residential buildings, schools, or glass where the original architectural structure of the frame cannot or should not be changed.

https://www.youtube.com/watch?v=h2XMYZrIT8w

Does It Really Reduce Cold from Windows?

These films play an important role in enhancing the thermal insulation of windows, reducing heat loss and helping to maintain a more consistent indoor temperature.

Technical Data Sheets of Insulating Films for Glass

Insulating Films

ThermoFilm 70

Technology: multi-sputtered polyester
Scratch-resistant: Yes
Average Technical Duration: > 15 years
Warranty: 10 years
Thickness (excluding liner): 50 micron
Safety: Makes glass shatter-resistant
Notes: Summer/winter indoor film. Improves existing glazing insulation by 40%

Choose the type of glass on which to install the film:

Total solar energy rejected

49%

Transmission (visible light)

70%

External Reflection (visible light)

7%

Ultraviolet rays transmitted <1%

0%

Warranty with installation: 10 years

g-value: 0.51%

Total solar energy rejected

45%

Transmission (visible light)

66%

External Reflection (visible light)

9%

Ultraviolet rays transmitted <1%

0%

Warranty with installation: 10 years

g-value: 0.55%

Attualmente non disponibile!

Insulating Films for Glass svg+xml;charset=utf

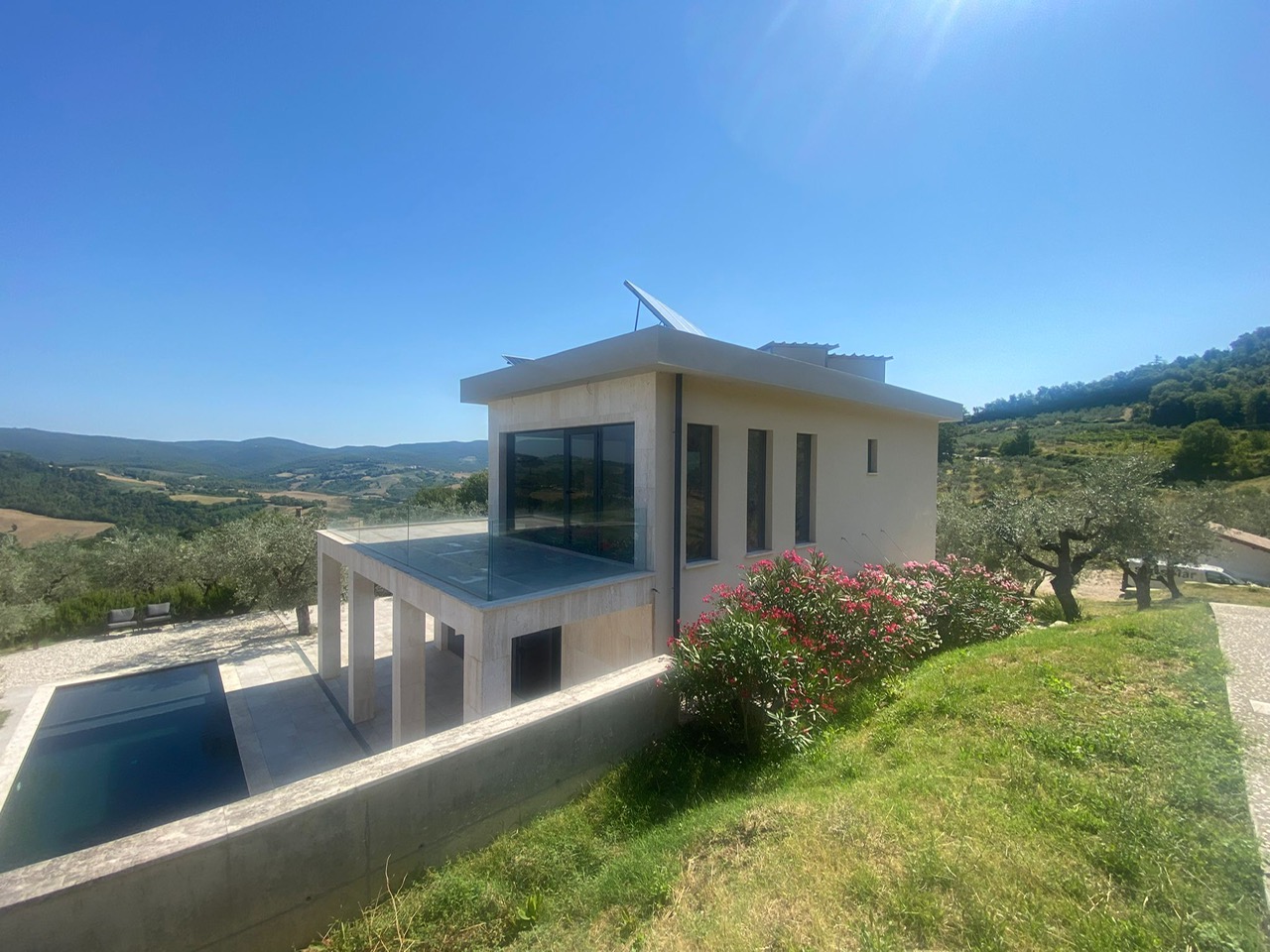

Some projects completed with insulating films for glass
